| Camera | |
|---|---|
| Image Sensor | 1/2.8” 2Megapixel progressive CMOS |
| Max. Resolution | 1920 × 1080 |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.002 Lux@F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: -30°–30°; Tilt: 0°–80°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H106° V57° D126° 3.6 mm: H87° V46° D104° 6 mm: H54° V29° D63° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.2 m (3.9 ft) 6 mm: 2.5 m (8.2 ft) |
| DORI Distance | |
| 2.8 mm | Detect: 38.6 m (126.6 ft); Observe: 15.4 m (50.5 ft); Recognize: 7.7 m (25.3 ft); Identify: 3.9 m (12.8 ft) |
| 3.6 mm | Detect: 55.2 m (181.1 ft); Observe: 22.1 m (72.5 ft); Recognize: 11.0 m (36.1 ft); Identify: 5.5 m (18.0 ft) |
| 6 mm | Detect: 82.8 m (271.7 ft); Observe: 33.1 m (108.6 ft); Recognize: 16.6 m (54.5 ft); Identify: 8.3 m (27.2 ft) |
| Professional & Intelligent | |
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work with Smart NVR for refined intelligent search, event extraction, merging to event videos |
| Video | |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (sub stream only) |
| Smart Codec | Smart H.265+, Smart H.264+ |
| Video Frame Rate | Main stream: 1920×1080@1–25/30 fps Sub stream: 704×576@1–25 fps / 704×480@1–30 fps Third stream: 1280×720@1–25/30 fps |
| Stream Capability | 3 streams |
| Resolution | 1080p, 1.3M, 720p, D1, VGA, CIF |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3–8192 Kbps; H.265: 3–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B&W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/Natural/Street lamp/Outdoor/Manual/Regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (90°/270° supported with 1920×1080 or lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a, G.711Mu, G726, AAC |
| Alarm | |
| Alarm Event | No SD card, SD card full/error, less SD service time, network disconnection, IP conflict, illegal access, voltage detection, security exception, motion detection, video tampering, scene changing, intensity change, tripwire, intrusion, SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF (Profile S/G), CGI, P2P, Milestone, Genetec |
| Scene Self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP, SFTP, Micro SD Card (max 256 G), Dahua Cloud, NAS |
| Browser | IE8/9/11, Chrome, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | iOS, Android |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | <5.7 W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) / <95% |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Ordering Information | |
| Type | 2MP Camera |
| Part Number | DH-IPC-HDBW3241FP-AS-M, DH-IPC-HDBW3241FN-AS-M |

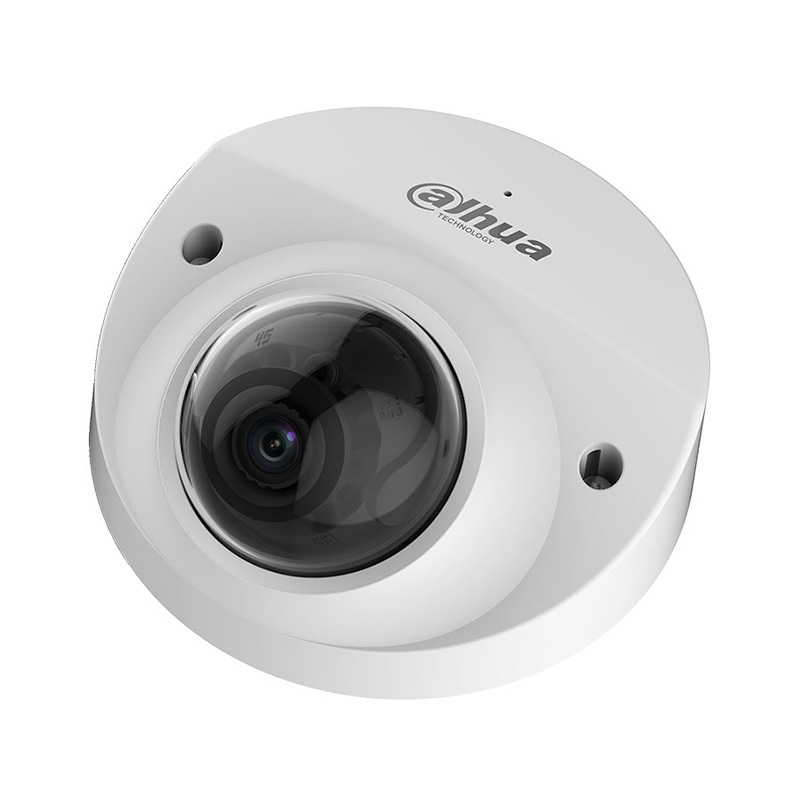

| Description | 2MP IR Fixed focal Dome WizSense Network Camera, PAL/NTSC |
| Accessories (Optional) | |
| PFA139 | Junction Box |
| PFB204W | Wall Mount |
| PFA152-E | Pole Mount |
| PFB220C | Mount Adapter |
| PFA106 | Ceiling Mount |
| PFM321D | DC12V1A Power Adapter |
| LR1002-1ET/1EC | Single-port Long Reach Ethernet Over Coax Extender |
| PFM900-E | Integrated Mount Tester |
| PFM114 | TLC SD Card |
