| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 2.8 mm: 10 m (32.81 ft) Warm light; 3.6 mm: 15 m (49.21 ft) Warm light |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | 2.8 mm: F1.6; 3.6 mm: F1.6 |
| Field of View | 2.8 mm: H: 106°; V: 56°; D: 127°; 3.6 mm: H: 88°; V: 46°; D: 104° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft); 3.6 mm: 1.1 m (3.61 ft) |
| DORI Distance | |
| Detect | 2.8 mm: 43.9 m (144.0 ft); 3.6 mm: 54.8 m (179.8 ft) |
| Observe | 2.8 mm: 17.5 m (57.4 ft); 3.6 mm: 21.9 m (71.9 ft) |
| Recognize | 2.8 mm: 8.8 m (28.9 ft); 3.6 mm: 11.0 m (36.1 ft) |
| Identify | 2.8 mm: 4.4 m (14.4 ft); 3.6 mm: 5.5 m (18.0 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (Sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080 @1–25/30 fps; Sub stream: 704 × 576 @1–25 fps / 704 × 480 @1–30 fps |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC / HLC | Yes / Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation/importing of X.509 certification; Trusted boot; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.4 W (12 VDC); 2.2 W (PoE); Max (H.265+IR intensity+ICR): 4.2 W (12 VDC); 5.3 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal + plastic |
| Product Dimensions | 162.6 mm × 70 mm × 70 mm (6.40″ × 2.76″× 2.76″) |
| Net Weight | 0.22 kg (0.49 lb) |
| Gross Weight | 0.34 kg (0.75 lb) |
| Ordering Information | |
| Type | 2 MP Camera |
| Model | DH-IPC-HFW1239S1-LED-S5 |

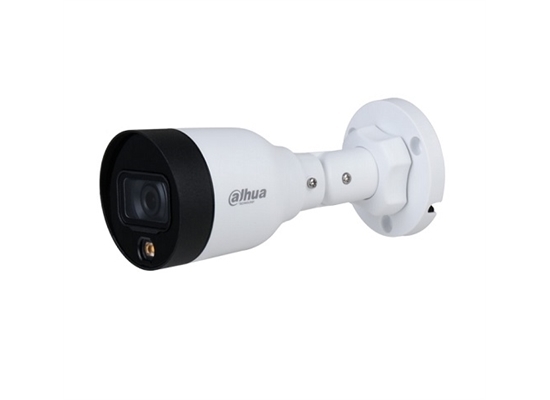

| Description | 2 MP Entry Full-color Fixed-focal Bullet Network Camera |
| Accessories (Optional) | PFA134 Junction Mount Bracket; PFA134+PFA152-E Pole Mount Bracket; PFM321D 12 VDC 1A Power Adapter; LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender; PFM900-E Integrated Mount Tester |
