| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 3840(H) × 2160(V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H:111°; V:58°; D:132° 3.6 mm: H:87°; V:49°; D:100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 1.9 m (6.23 ft) |
| DORI Distance | |
| 2.8 mm | Detect: 84.8 m (278.22 ft); Observe: 33.9 m (111.22 ft); Recognize: 17.0 m (55.77 ft); Identify: 8.5 m (27.89 ft) |
| 3.6 mm | Detect: 98.7 m (350.07 ft); Observe: 39.5 m (129.59 ft); Recognize: 19.7 m (64.63 ft); Identify: 9.9 m (32.48 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (supports classification & detection of vehicle/human) |
| Smart Search | Works with Smart NVR to perform refined intelligent search, event extraction, merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3840×2160 (1–20 fps)/2688×1520 (1–25/30 fps) Sub stream: 704×576 (1–25 fps)/704×480 (1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 3840×2160; 3072×2048; 3072×1728; 2880×1620; 2688×1520; 3M; 2304×1296; 1080p; 1.3M; 720p; D1; VGA; CIF |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32–8192 kbps; H.265: 12–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF (Profile S/G/T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (max 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | |
| Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | |
| Certification | |
| CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.6 W (12 VDC); 3.3 W (PoE) Max: 5 W (12 VDC); 5.9 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | |
| IP67 | |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 100.9 mm × Φ109.9 mm (3.97″× Φ4.33″) |
| Net Weight | 0.38 kg (0.84 lb) |
| Gross Weight | 0.52 kg (1.15 lb) |
| Ordering Information | |
| Type | 8MP Camera |
| Model | DH-IPC-HDW2849T-S-IL |

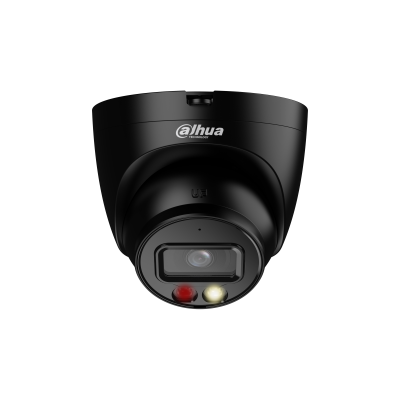

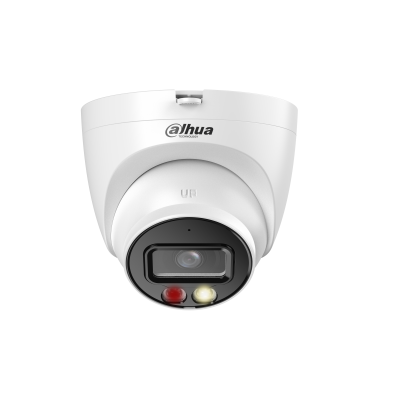

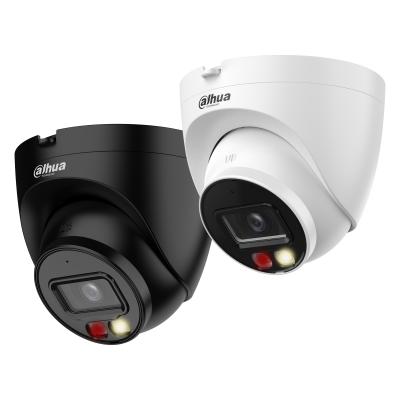

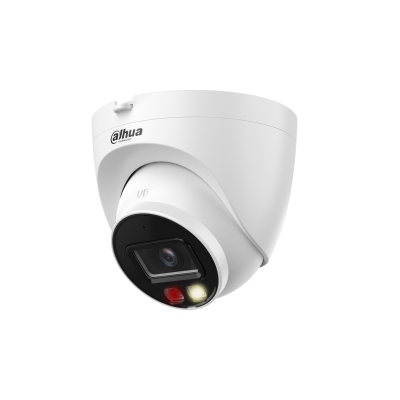

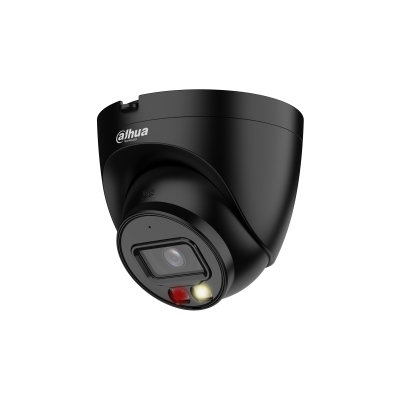

| Description | 8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera |
| Accessories (Optional) | PFA13G; PFB205W-E; PFA152-E; PFA109; PFB220C; PFM321D; PFM900-E; TF-P100 MicroSD Memory Card |
