| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s; NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 18 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.6 |
| Angle of View | H: 86.9° (106.0°/52.9°) |
| Focus Control | N/A |
| Close Focus Distance | 1200mm (600mm/2400mm) — 47.2” (23.6”/94.5”) |
| Certifications | |
| CE (EN55032, EN55024, EN50130-4); FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014); UL (UL60950-1 + CAN/CSA C22.2 No.60950-1) | |
| Electrical | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 4.5W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 164.7mm×70mm×71.6mm (6.48″×2.76″×2.82″) |
| Net Weight | 0.36kg (0.79lb) |
| Gross Weight | 0.45kg (0.99lb) |
| DORI Distance | |
| Detect | 2.8mm: 39m (127ft); 3.6mm: 55m (181ft); 6mm: 83m (272ft) |
| Observe | 2.8mm: 15m (51ft); 3.6mm: 22m (73ft); 6mm: 33m (109ft) |
| Recognize | 2.8mm: 8m (25ft); 3.6mm: 11m (36ft); 6mm: 17m (54ft) |
| Identify | 2.8mm: 4m (13ft); 3.6mm: 6m (18ft); 6mm: 8m (27ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360° |
| Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Ordering Information | |
| Type | 2MP Camera |
| Part Number | DH-HAC-HFW1230SP 2.8mm / 3.6mm / 6mm; DH-HAC-HFW1230SN 2.8mm / 3.6mm / 6mm |

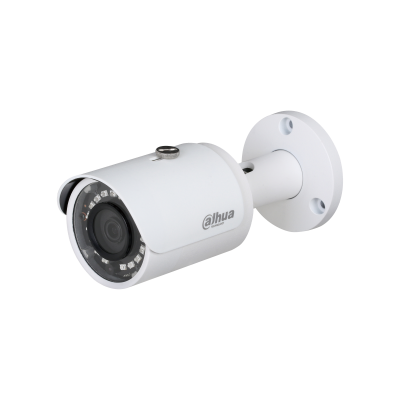

| Description | 2MP Starlight HDCVI IR Bullet Camera, PAL / NTSC |
| Accessories | PFA134 Junction box; PFA152-E Pole mount; PFM820 UTC Controller; PFM800-E Passive HDCVI Balun; PFM800-4K Passive Video Balun; PFM800B-4K Passive Video Balun; PFM321 12V 1A Power Adapter; PFM320D-015 12V 1.5A Power Adapter; PFM300 12V 2A Power Adapter |
