| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.002 Lux@F1.6 (Color, 30 IRE); 0.0002 Lux@F1.6 (B/W, 30 IRE); 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 60 m (196.85 ft) IR |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 108°–30°; Vertical: 56°–17°; Diagonal: 131°–35° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | |
| Wide Lens (W) | Detect: 44.1 m (144.69 ft); Observe: 17.7 m (58.07 ft); Recognize: 8.8 m (28.87 ft); Identify: 4.4 m (14.44 ft) |
| Tele Lens (T) | Detect: 144.8 m (475.07 ft); Observe: 57.9 m (189.96 ft); Recognize: 29.0 m (95.14 ft); Identify: 14.5 m (47.57 ft) |
| Smart Event | |
| IVS | Tripwire; Intrusion |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (Sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080 @1–25/30 fps; Sub stream: 704 × 576 @1–25 fps / 704 × 480 @1–30 fps |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC / HLC | Yes / Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; tripwire; intrusion; voltage detection; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation/importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/G/T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power | |
| Power Supply | 12 V DC/PoE |
| Power Consumption | Basic: 1.8 W (12 V DC); 2.2 W (PoE); Max: 8.2 W (12 V DC); 9.8 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67; IK10 (optional) |
| Structure | |
| Casing | Metal |
| Product Dimensions | 244.1 mm × Φ90.4 mm (9.6″ × Φ3.6″) |
| Net Weight | 0.89 kg (2.0 lb) |
| Gross Weight | 1.13 kg (2.5 lb) |
| Ordering Information | |
| Type | 2MP Camera |
| Model | DH-IPC-HFW2231T-ZS-S2 |

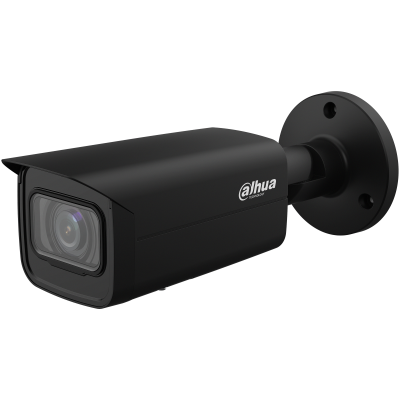

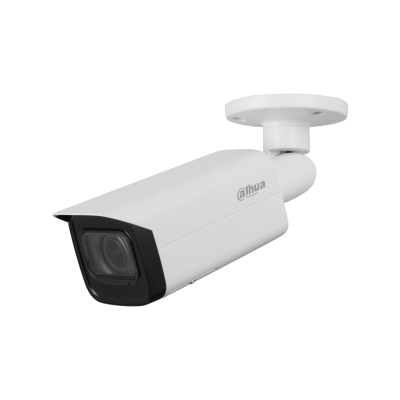

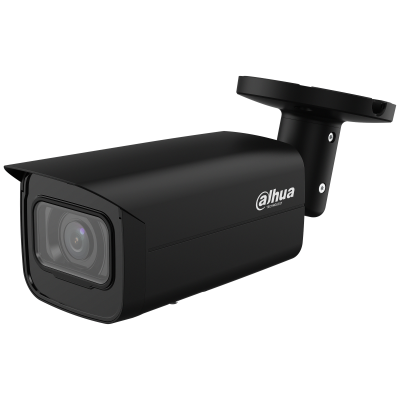

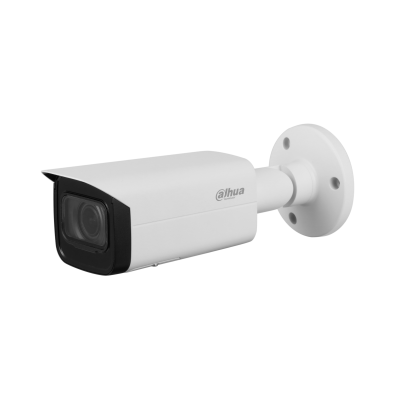

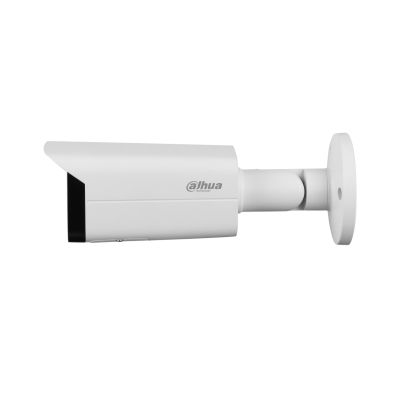

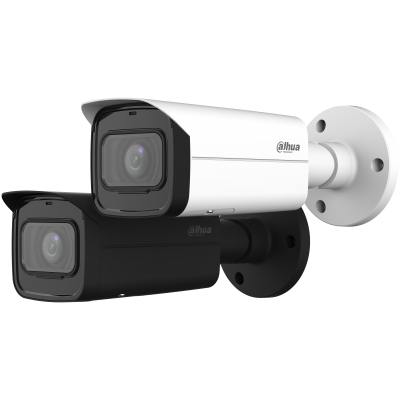

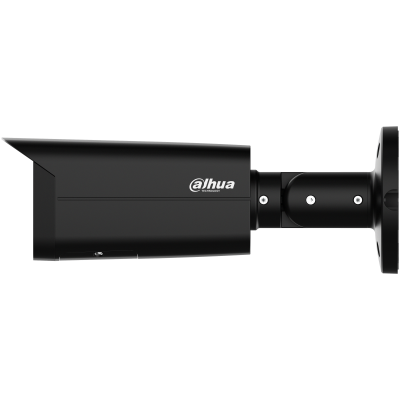

| Description | 2MP Lite IR Vari-focal Bullet Network Camera |
| Accessories (Optional) | PFA130-E Junction Box; PFA152-E Pole Mount Bracket; PFM321D 12V DC 1A Power Adapter; PFM900-E Integrated Mount Tester |
