| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (Warm light) |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 101°; V: 53°; D: 120° 3.6 mm: H: 82°; V: 43°; D: 94° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | |
| 2.8 mm | Detect: 66.0 m (216.54 ft); Observe: 26.4 m (86.61 ft); Recognize: 13.2 m (43.31 ft); Identify: 6.6 m (21.65 ft) |
| 3.6 mm | Detect: 78.0 m (255.91 ft); Observe: 31.2 m (102.36 ft); Recognize: 15.6 m (51.18 ft); Identify: 7.8 m (25.59 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (supports vehicle and human classification) |
| Smart Search | Work with Smart NVR for refined intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps); Sub: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 4M; 3.6M; 3M; 1080p; 1.3M; 720p; D1; VGA; CIF |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC / HLC | Yes / Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (support 2688 × 1520 & lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S/G/T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | |
| Features | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation/import X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: 2014/30/EU |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.7 W (12 VDC); 3.6 W (PoE) Max: 6.8 W (12 VDC); 8.3 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 70.0 mm × 70.0 mm × 166.2 mm (2.76″ × 2.76″ × 6.54″) |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
| Ordering Information | |
| Type | 4MP Camera |
| Model | DH-IPC-HFW2449S-S-LED |

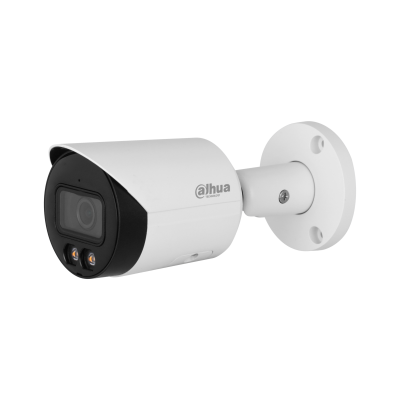

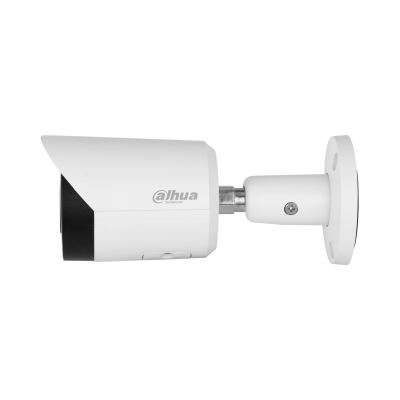

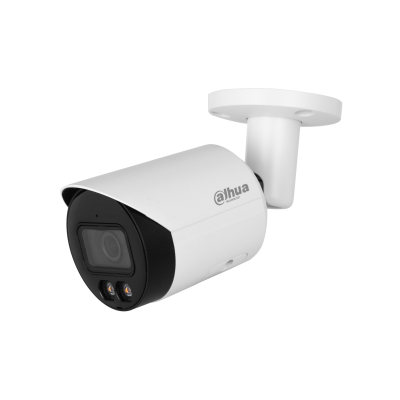

| Description | 4MP Full-color Fixed-focal Bullet Wizsense Network Camera |
| Accessories (Optional) | PFA134 Junction Box; PFA130-E Waterproof Junction Box; PFA152-E Pole Mount Bracket; PFM321D 12 VDC 1A Power Adapter; PFM900-E Integrated Mount Tester; TF-P100 MicroSD Memory Card |
