| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM / RAM | 128 MB / 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 Lux@F1.6 (Color, 30 IRE); 0.0008 Lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | Up to 60 m (IR); Up to 50 m (Warm light) |
| Lens Type / Mount | Fixed-focal / M12 |
| Focal Length | 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 3.6 mm: H:87°; V:49°; D:100° / 6 mm: H:55°; V:31°; D:62° |
| Illuminator Number | 2 (IR LED) + 2 (Warm light) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Sub Stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Frame Rate | Main: 3840×2160@(1–20fps)/2688×1520@(1–25/30fps); Sub: 704×576@(1–25fps)/704×480@(1–30fps) |
| Streams | 2 streams |
| WDR / BLC / HLC | 120 dB / Yes / Yes |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Network Protocol | IPv4/IPv6; HTTP; TCP; UDP; RTP; RTSP; SMTP; FTP; SFTP; DHCP; DDNS; QoS; NTP; Multicast; P2P |
| Interoperability | ONVIF (Profile S/T/G); CGI |
| Storage | FTP; SFTP; Micro SD card (max. 256 GB) |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic: 2.6 W; Max: 7 W (12 VDC) / 8.3 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67; IK10 (optional); Low anti-corrosion |
| Casing Material | Metal |
| Dimensions | 238.5 × 90.7 × 90.7 mm (9.39″ × 3.57″ × 3.57″) |
| Weight | Net: 0.72 kg / Gross: 0.97 kg |
| Type | 8MP Camera |
| Model | DH-IPC-HFW2849T-AS-IL |

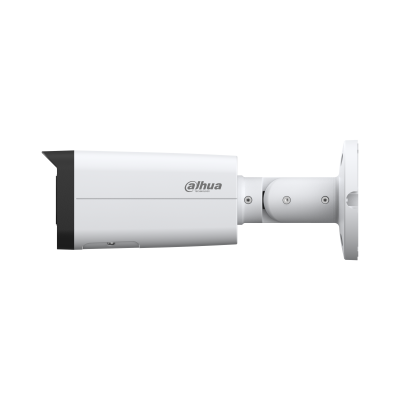

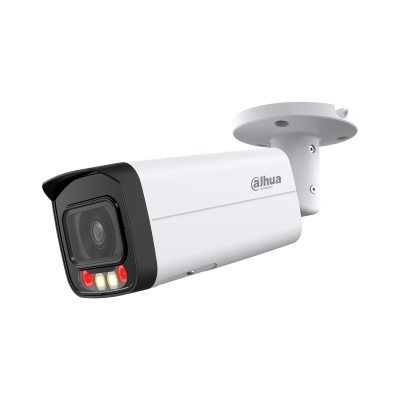

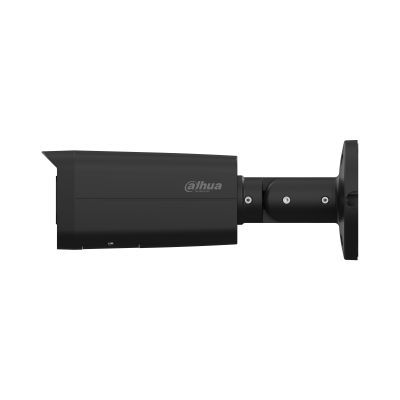

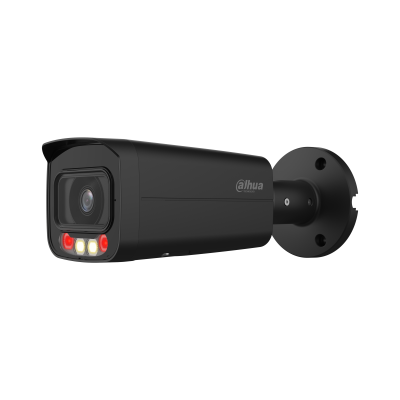

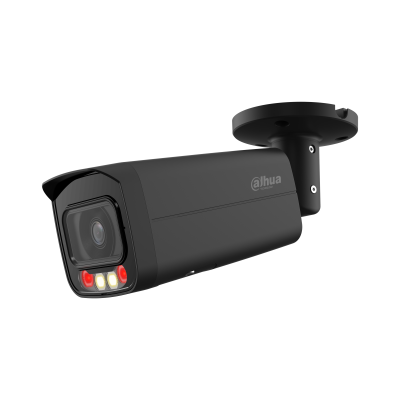

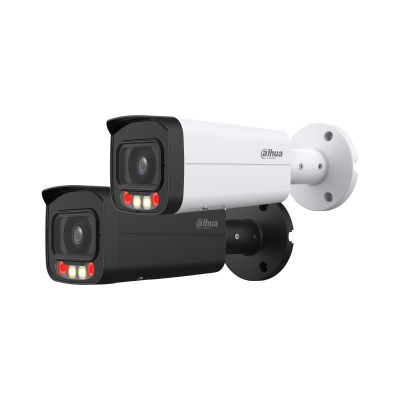

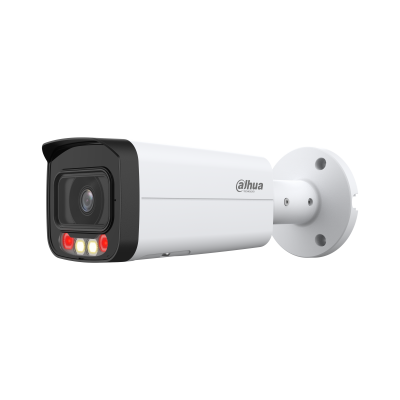

| Description | 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera |
| PFA130-E | Water-proof Junction Box |
| PFA152-E | Pole Mount Bracket |
| PFM321D | 12 VDC 1A Power Adapter |
| PFM900-E | Integrated Mount Tester |
| TF-P100 | MicroSD Memory Card |
