| Technical Specification | ||
|---|---|---|
| Camera | ||
| Image Sensor | 1/1.8″ CMOS | |
| Max. Resolution | 2688 (H) × 1520 (V) | |
| ROM | 4 GB | |
| RAM | 1 GB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Min. Illumination | 0.0007 lux@F1.8 (Color, 30 IRE); 0.0004 lux@F1.8 (B/W, 30 IRE); 0 lux (Illuminator on) | |
| S/N Ratio | >56 dB | |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) | |
| Illuminator On/Off Control | Auto; Zoomprio; Manual | |
| Illuminator Number | 4 (IR LED) | |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° | |
| Lens | ||
| Lens Type | Motorized vari-focal | |
| Lens Mount | φ14 | |
| Focal Length | 2.7 mm–12 mm | |
| Max. Aperture | F1.8 | |
| Field of View | H: 115°–47°; V: 62°–27°; D: 137°–54° | |
| Iris Control | Auto | |
| Close Focus Distance | 1.5 m (4.92 ft) | |
| DORI Distance | ||
| W | Detect: 57.5 m; Observe: 23.0 m; Recognize: 11.5 m; Identify: 5.8 m | |
| T | Detect: 130.8 m; Observe: 52.3 m; Recognize: 26.2 m; Identify: 13.1 m | |
| Intelligence | ||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection (vehicle/animal/human classification supported) | |
| Smart Object Detection | Smart abandoned/missing object | |
| SMD | SMD 3.0 | |
| AcuPick | Deep learning algorithm for accurate target search (people, animal, vehicles) | |
| AI SSA | Yes | |
| Face Detection | Detection, tracking, snapshot, optimization, face attributes (6 attributes, 8 expressions) | |
| People Counting | Tripwire and area counting, queue management, daily/weekly/monthly reports | |
| Heat Map | Yes | |
| Video Metadata | Vehicle, non-vehicle, face, body detection and attributes (gender, clothing, mask, etc.) | |
| Smart Search | Refined intelligent search via Smart NVR | |
| Smart Sound Detection | Yes | |
| Video | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | |
| Smart Codec | Smart H.265+; Smart H.264+ | |
| AI Coding | AI H.265; AI H.264 | |
| Video Frame Rate | Main: 2688×1520@1–25/30fps / 1920×1080@1–50/60fps; Sub: D1@1–25/30fps; Third: 1080p@1–25/30fps; Fourth: 720p@1–25/30fps | |
| Stream Capability | 4 streams | |
| Resolution | 4M, 3.6M, 3M, 1080p, 720p, D1, VGA, CIF | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11008 kbps | |
| Day/Night | Auto (ICR) / Color / B/W | |
| WDR | 140 dB | |
| Noise Reduction | 3D NR | |
| Defog | Yes | |
| Privacy Masking | 8 areas | |
| Audio | ||
| Built-in MIC | Yes | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | |
| Network | ||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | |
| Protocols | IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, FTP, SFTP, DHCP, DNS, DDNS, SNMP, P2P, etc. | |
| Interoperability | ONVIF (Profile S/G/T/M); CGI | |
| Storage | FTP, SFTP, Micro SD (max. 1TB), NAS | |
| Users | 20 (Total bandwidth: 80 Mbps) | |
| Power | ||
| Power Supply | 12V DC / PoE (802.3af) / ePoE | |
| Dual Power Backup | Yes (continues operation during power source switch) | |
| Power Consumption | Max 9.8W (12V DC) / 12.3W (PoE) | |
| Environment | ||
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) | |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | |
| Operating Humidity | ≤95% | |
| Protection | IP67; IK10 | |
| Structure | ||
| Casing Material | Metal + Plastic | |
| Dimensions | 273.2 × 95.0 × 95.0 mm (10.76″ × 3.74″ × 3.74″) | |
| Net Weight | 1.12 kg (2.47 lb) | |
| Gross Weight | 1.66 kg (3.66 lb) | |
| Ordering Information | ||

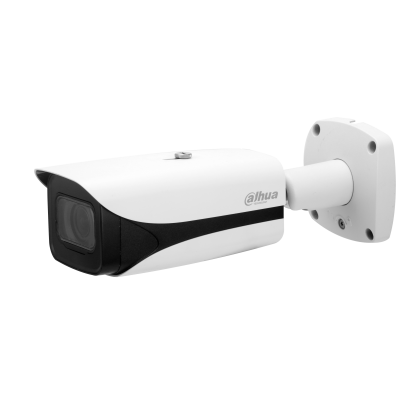

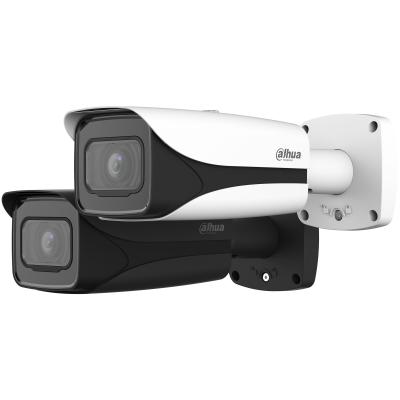

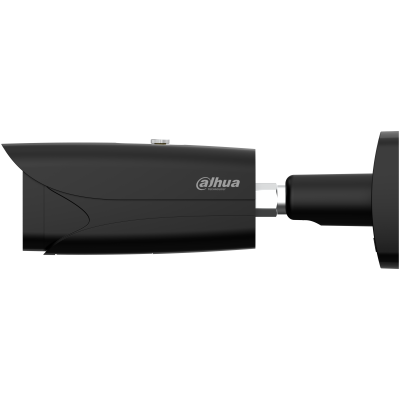

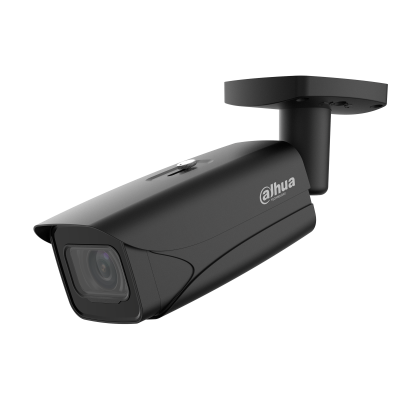

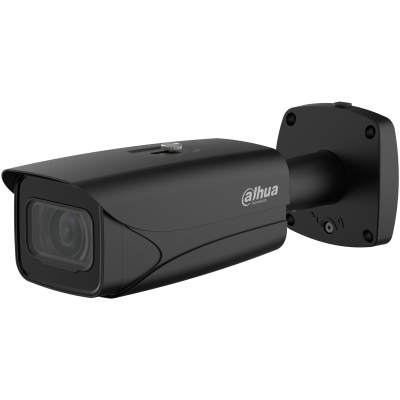

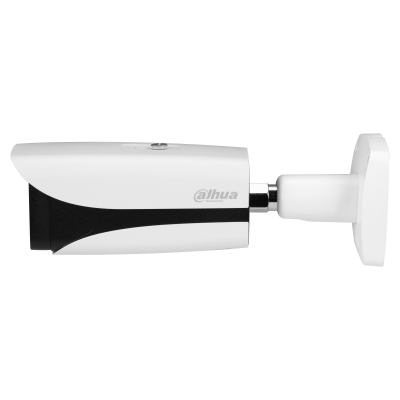

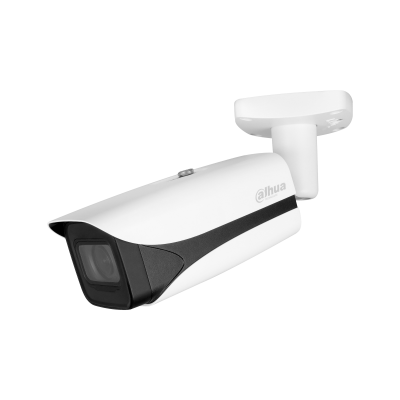

| 4MP Camera | DH-IPC-HFW5442E-ZE | 4MP IR Vari-focal Bullet WizMind Network Camera |
| IPC-HFW5442E-ZE | 4MP IR Vari-focal Bullet WizMind Network Camera | |
| Accessories (Optional) | ||
| PFA121 | Water-proof Junction Box | |
| PFA156 | Pole Mount Bracket | |
| PFM321D | 12 VDC 1A Power Adapter | |
| PFM900-E | Integrated Mount Tester | |
| TF-P100 | MicroSD Memory Card | |
