| Technical Specification | |
|---|---|
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | |
| Capabilities | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus |
| AI by Camera | |
| Capabilities | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring |
| AcuPick AI | Max. 64-channel, 1 combined event per channel |
| Perimeter Protection | |
| AI by Recorder (Simultaneous mode) | 32 channels, 10 IVS rules for each channel |
| AI by Recorder (Heterogeneous mode) | 24 channels, 10 IVS rules for each channel |
| AI by Camera | All channels (64 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Performance by Recorder (Simultaneous mode) | 8 channels (up to 12 face images/s each channel) |
| Performance by Recorder (Heterogeneous mode) | 5 channels (up to 12 face images/s each channel) |
| Performance by Camera | 64 channels |
| Face Recognition | |
| Face Database Capacity | Up to 40 face databases with 300,000 images, total capacity 48 G |
| Performance by Recorder | Simultaneous mode: 32-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s. Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s |
| Performance by Camera | 64 channels |
| SMD Plus | |
| By Recorder | 32-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| By Camera | All channels (128 targets/s) |
| Video Metadata | |
| Performance by Recorder | 8 channels |
| Performance by Camera | 64 channels |
| People Attributes | |
| Human Attributes | Top color, top type, hat, bag, age, gender, umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
| Vehicle License Plate Comparison | ANPR by Camera (All channels, 64 targets/s) |
| License Plate Database Capacity | Blocklist and allowlist: 20,000 |
| Audio and Video | |
| Access Channel | 128 channels |
| Network Bandwidth | AI disabled: 1280 Mbps incoming, 1280 Mbps recording, 1024 Mbps outgoing; AI enabled: 640 Mbps incoming, 640 Mbps recording, 512 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30 fps; … AI enabled: 1-channel 32 MP@30 fps; … |
| Video Output | |
| Ports | 2 VGA, 4 HDMI |
| Resolutions | VGA: 1920×1080, 1280×1024, 1280×720; HDMI1&2: 3840×2160, 1920×1080, 1280×1024, 1280×720; HDMI3: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720; HDMI4: 1920×1080, 1280×1024, 1280×720 |
| Simultaneous mode | Max. resolution VGA1&2: 1080p; HDMI1&2: 4K; HDMI3: 8K; HDMI4: 1080p |
| Heterogeneous mode | Max. resolution VGA1&2: 1080p; HDMI1,2,3: 4K; HDMI4: 1080p |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64; Sub screen: 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search; Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF (Profile S/T/G); CGI; SDK |
| Browser | Chrome; IE 9 or later; Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance, other network port binding modes |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Backup Method | Portable hard drive, eSATA disk, burner, USB device, network |
| Playback Mode | Play, pause, stop, fast forward/backward, rewind, play by frame; Full screen, backup (cut/file), partial enlarge, audio on/off |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm | |
| General Alarm | Motion detection; video tampering; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP/MAC conflict; login lock; abnormal fan behavior |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email |

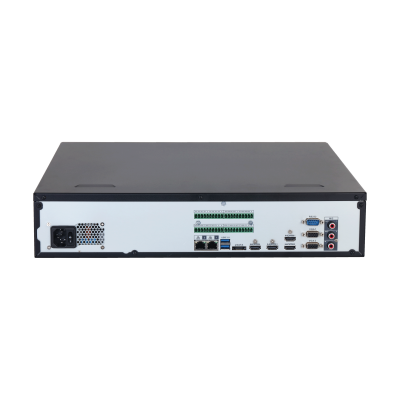

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| Disk Interface | 8 SATA ports (up to 20TB per disk), eSATA 1, RS-232 1, RS-485 1×A/B, USB 4 (2 front USB 2.0, 2 rear USB 3.0), HDMI 4, VGA 2, Network Port 2 (10/100/1000/2500 Mbps Ethernet, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <18 W (without HDD) |
| Net Weight | 6.40 kg (without HDD) |
| Gross Weight | 8.59 kg (without HDD) |
| Product Dimensions | 440 × 458.4 × 94.9 mm (W×D×H) |
| Packaging Dimensions | 571 × 499 × 211 mm (W×D×H) |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | 0 °C to +40 °C |
| Operating Humidity | 10%–93% (non-condensing) |
| Installation | Rack or desktop |
| Certifications | |
| Certifications | FCC: 47 CFR Part15, SubpartB, Class A; CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017 |
| Ordering Information | |

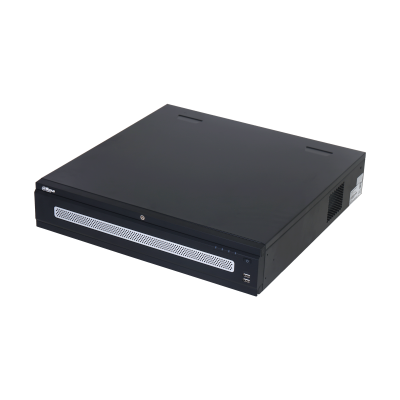

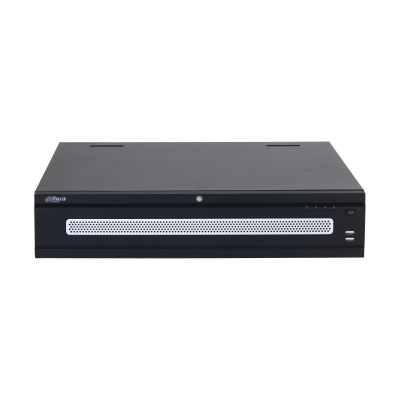

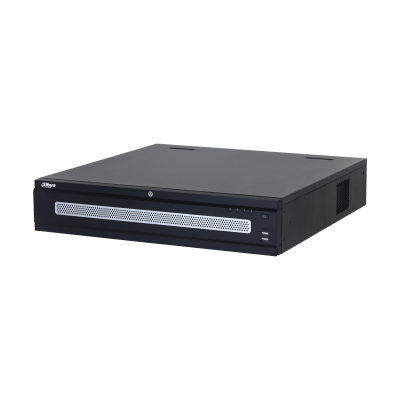

| Type | AI Network Video Recorder |
| Model | DHI-NVR608H-128-XI |
| Description | 128CH 2U 8HDDs WizMind Network Video Recorder |
