| Camera | |
|---|---|

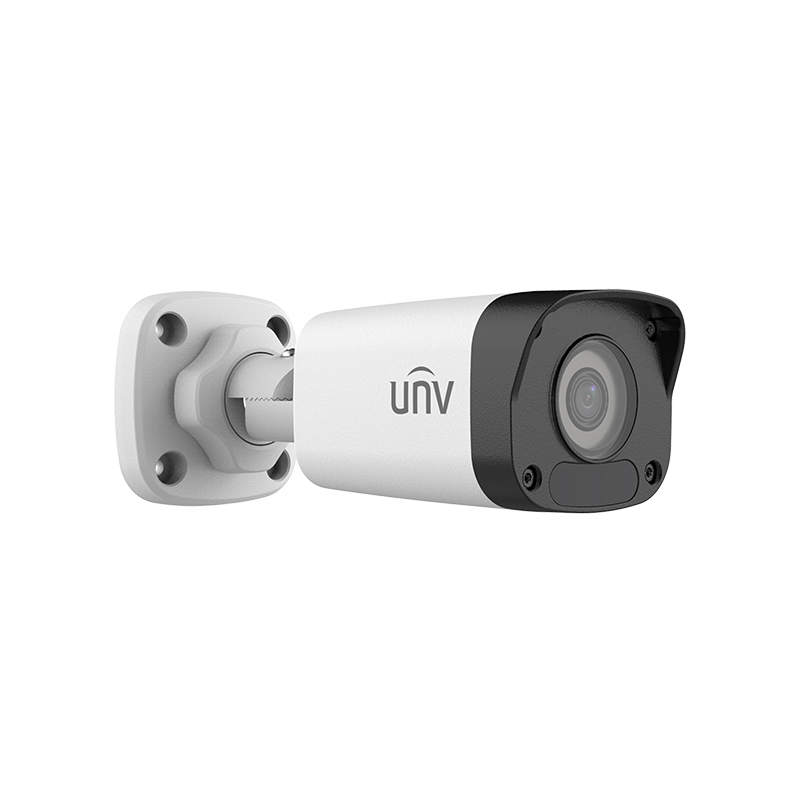

| Model | IPC2124LB-SF28-A, IPC2124LB-SF40-A |
| Image Sensor | 1/3.0″ CMOS |
| Max Resolution | 4 MP (2560×1440) |
| Min. Illumination | Colour: 0.01 Lux @ (F2.1, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 2.8 mm, 4.0 mm |
| Iris Type | Fixed |
| Iris | F2.1 |
| Field of View | 2.8 mm: H 97.0°, V 52.2°, D 107.5° 4.0 mm: H 79.0°, V 42.3°, D 85.1° |
| DORI | |
| DORI Distance (2.8 mm) | Detect: 63.0 m (206.7 ft), Observe: 25.2 m (82.7 ft), Recognize: 12.6 m (41.3 ft), Identify: 6.3 m (20.7 ft) |
| DORI Distance (4.0 mm) | Detect: 90.0 m (295.3 ft), Observe: 36.0 m (118.1 ft), Recognize: 18.0 m (59.1 ft), Identify: 9.0 m (29.5 ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4 MP (2560×1440), Max 25 fps; 3 MP (2304×1296), Max 25 fps; 2 MP (1920×1080), Max 30 fps Sub Stream: D1 (720×576), Max 30 fps; 640×360, Max 30 fps; 2CIF (704×288), Max 30 fps; CIF (352×288), Max 30 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support (Main stream) |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual Streams |
| Image | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion Detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user, operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863), WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max 5.0 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 161 × 63 × 62 mm (6.4” × 2.5” × 2.4”) |
| Weight | 0.31 kg (0.68 lb) |
| Material | Graphene + Plastic |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
| Web Client Language | English |
