| System | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection, face recognition, perimeter protection, SMD Plus |
| AI by Camera | Face detection, face recognition, video metadata (human, motor vehicles, non-motor vehicles), perimeter protection, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map |
| AcuPick AI by Camera + Recorder | Max. 32-channel, 1 combined event per channel/s |
| Perimeter Protection | |
| AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules per channel |
| AI by Camera (Number of Channels) | All channels (16 targets/s) |
| Face Detection | |
| Face Attributes | Gender, age group, glasses, expressions, face mask, beard |
| Performance AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Performance AI by Camera (Number of Channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 databases with 20,000 images, total 2.5 GB. Name, gender, birthday, address, credential type, credential No., countries & regions, state can be added per image |
| Performance AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), 16 face images/s 2. 2-channel FD (by recorder) + FR (by recorder), 12 face images/s |
| Performance AI by Camera (Number of Channels) | 16 channels |
| SMD Plus | |
| By Recorder | 8 channels: secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, lighting changes |
| By Camera | All channels (32 targets/s) |
| Video Metadata | |
| Performance AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
| ANPR by Camera (Number of Channels) | All channels (8 targets/s) |
| License Plate Database Capacity | Create up to 20,000 plate numbers, blocklist and allowlist |
| Audio & Video | |
| Access Channel | 64 channels |
| Network Bandwidth | AI disabled: 384 Mbps incoming, recording, outgoing AI enabled: 200 Mbps incoming, recording, outgoing |
| Resolution | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF, QCIF |
| Decoding Capability | AI disabled: 2-channel 32MP@25fps, 2-channel 24MP@25fps, 4-channel 16MP@30fps, 5-channel 12MP@30fps, 8-channel 8MP@30fps, 10-channel 6MP@30fps, 12-channel 5MP@30fps, 16-channel 4MP@30fps, 32-channel 1080p@30fps AI enabled: 1-channel 32MP@25fps, 1-channel 24MP@25fps, 2-channel 16MP@30fps, 4-channel 12MP@30fps, 6-channel 8MP@30fps, 8-channel 6MP@30fps, 8-channel 5MP@30fps, 12-channel 4MP@30fps, 24-channel 1080p@30fps |
| Video Output | 2 VGA, 2 HDMI VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous output for HDMI1/2, simultaneous output for VGA1+HDMI1, VGA2+HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | G.711a, G.711u, PCM, G726 |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, IP Search (supports Dahua IP camera, DVR, NVS), Multicast, P2P, Auto Registration, iSCSI |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF 23.12 (Profile T, S, G), CGI, SDK |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Network Mode | Multi-address, load balance, fault tolerance, other port binding modes |
| Recording & Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection, intelligent, alarm, POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face & motion detection) |
| Storage | |
| Disk Group | Yes |
| RAID | 0/1/5/6/10 |
| Disk Interface | 8 SATA ports, each disk up to 20 TB (depends on environment) |
| eSATA | 1 |
| Alarm | |
| General Alarm | Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal alarm |
| Anomaly Alarm | Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, fan abnormal, cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection, face recognition, video metadata (human, motor vehicles, non-motor vehicles), SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map |
| Alarm Linkage | Record, snapshot (panoramic), local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email |
| Ports | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1-channel 12V 1A output) |
| RS-232 | 1 |
| RS-485 | 2 (1 half-duplex, 1 full-duplex) |
| USB | 4 (2 front USB 2.0, 2 rear USB 3.0) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 × 10/100/1000 Mbps RJ-45 |
| General | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output ≤ 13 W (without HDD) |
| Net Weight | 6.40 kg (14.11 lb) |
| Gross Weight | 9.01 kg (19.86 lb) |
| Product Dimensions (W×D×H) | 439.9 × 457.9 × 89.0 mm (17.32″ × 18.03″ × 3.50″) |
| Packaging Dimensions (W×D×H) | 570.0 × 570.0 × 226.0 mm (22.44″ × 22.44″ × 8.90″) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Humidity | 10%–93% RH, non-condensing |
| Installation | Rack or desktop |
| Certifications | |
| FCC | 47 CFR FCC Part15, SubpartB, Class A |
| CE-EMC | EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 |
| CE-LVD | EN 62368-1:2014 |
| Ordering Information | |

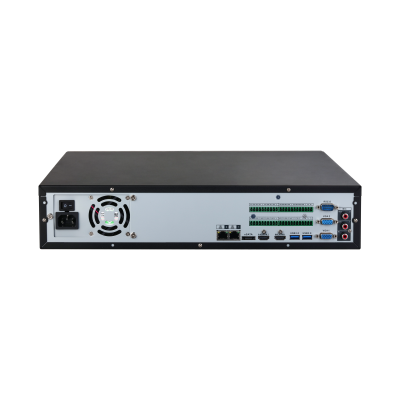

| Type | NETWORK VIDEO RECORDER |
| Model | DHI-NVR5864-EI |
| Description | Dahua 64CH 8HDD 2U NETWORK VIDEO RECORDER |
