| Technical Specification | |
|---|---|
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM / RAM | 128 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.5 (Color, 30 IRE); 0.0006 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 40 m (131.23 ft) (IR); Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Control | Auto / Manual |
| Illuminator Number | 2 (Multi-core IR + Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 97°–28°; V: 52°–16°; D: 117°–32° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | |
| Detect / Observe / Recognize / Identify | 210 m / 84 m / 42 m / 21 m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, Tripwire (supports vehicle & human classification) |
| SMD | SMD Plus |
| Smart Search | Refined intelligent search, event extraction and merging with Smart NVR |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Frame Rate | Main stream: 2688×1520@(1–20 fps)/2560×1440@(1–25/30 fps) Sub stream: 704×576@(1–25 fps)/704×480@(1–30 fps) |
| Resolution | 4M (2688×1520/2560×1440); 3M (2304×1296); 1080p; 720p; D1; VGA; CIF |
| Bit Rate | H.264: 32–6144 kbps; H.265: 12–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Smart Dual Light | Yes |
| Image Rotation | 0°/90°/180°/270° |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocols | IPv4; IPv6; HTTP; TCP; UDP; RTP; RTSP; SMTP; FTP; SFTP; DHCP; NTP; P2P; etc. |
| Interoperability | ONVIF (Profile S, T, G); CGI |
| Storage | FTP; SFTP; Micro SD card (up to 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS; Android |
| Power & Environment | |
| Power Supply | 12 VDC; PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC) / 2.8 W (PoE); Max: 7.8 W (12 VDC) / 9.3 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Material | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.26″ × Φ4.80″) |
| Net / Gross Weight | 0.69 kg / 0.86 kg |
| Ordering Information | |

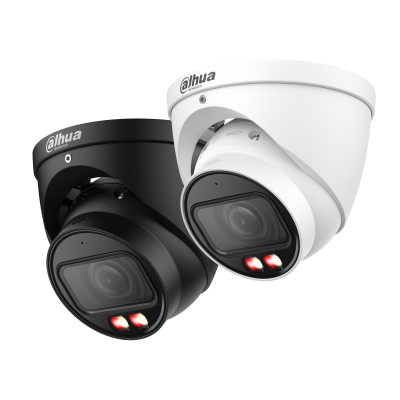

| Model | DH-IPC-HDW2449T-ZS-IL – 4MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera |
| Accessories (Optional) | DH-PFA117: Ceiling Mount Bracket DH-PFA106: Mount Adapter DH-PFB220C: Ceiling Mount Bracket DH-PFB305W: Wall Mount Bracket DH-PFA151: Corner Mount Bracket DH-PFA150: Pole Mount Bracket DH-PFB203W: Wall Mount Bracket DH-PFA152-E: Pole Mount Bracket DH-PFA137: Junction Box DH-PFM321-EN / DH-PFM321D-EN / DH-PFM320D-EN: Power Adapters PFM900-E: Integrated Mount Tester DHI-TF-P100/256GB: MicroSD Card |
