| Technical Specification | |
|---|---|
| Model | |

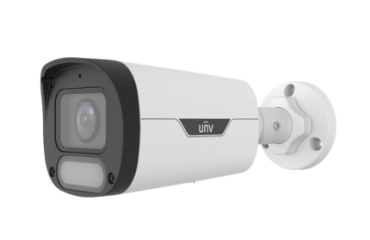

| Model Name | IPC2315LE-DF28KM-WP / IPC2315LE-DF40KM-WP |
| Camera | |
| Image Sensor | 1/1.8″, 5.0 Megapixel, Progressive Scan CMOS |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° |
| WDR | 120dB |
| S/N Ratio | >52dB |
| Lens | |
| Lens | 2.8mm @F1.0 / 4.0mm @F1.0 |
| Iris | Fixed |
| Field of View (H) | 110.4° / 89.4° |
| Field of View (V) | 60.5° / 48.2° |
| Field of View (D) | 115.2° / 94.7° |
| DORI Distance | |
| 2.8mm Lens | Detect: 43.4m, Observe: 17.4m, Recognize: 8.7m, Identify: 4.3m |
| 4.0mm Lens | Detect: 62.1m, Observe: 24.8m, Recognize: 12.4m, Identify: 6.2m |
| Illuminator | |
| Warm Light Range | Up to 30m (98ft) |
| Light Control | Auto / Manual |
| Video | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 5MP (2880×1620) @25fps; 4MP (2560×1440) @25fps; 3MP (2304×1296) @30fps; 1080P (1920×1080) @30fps Sub Stream: 720P (1280×720) @30fps; D1 (720×576) @30fps; 640×360 @30fps; 2CIF (704×288) @30fps; CIF (352×288) @30fps |
| Video Bitrate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| Video Stream | Dual Streams |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart Illumination | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| Dewarping | N/A |
| HLC / BLC | Supported |
| Defog | Digital Defog |
| Events & Functions | |
| Basic Detection | Cross Line, Intrusion (Human Body), Motion, Ultra Motion, Tampering, Audio Detection |
| General Functions | Watermark, IP Filtering, Access Policy, ARP Protection, RTSP & User Authentication, HTTP Auth |
| Audio | |
| Compression | G.711U / G.711A |
| Bitrate | 64 Kbps |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Two-way Audio | N/A |
| Built-in Mic / Speaker | N/A |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Integration | ONVIF (Profile S/G/T), API, SDK |
| Users | Up to 32 users (Administrator, Common) |
| Security | Password Protection, HTTPS Encryption, Logs, TLS 1.2, WSSE, Digest Auth |
| Client | EZStation, EZView, EZLive |
| Web Browser | IE10+, Chrome 45+, Firefox 52+, Edge 79+ (Plug-in); Chrome 57+, Firefox 58+, Edge 16+ (Plug-in Free) |
| Network Interface | 1 × RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC Part15 B |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS, WEEE |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af), Max 2.8W |
| Power Interface | Ø 5.5mm coaxial plug |
| Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) |
| Weight | 0.48kg (1.06lb) |
| Material | Graphene + Metal |
| Operating Environment | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
