| Technical Specification | |
|---|---|
| System | |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Audio and Video | |
| Access Channel | 8 channels |
| Network Bandwidth | Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing Wireless mode: 16 Mbps incoming, 16 Mbps recording |
| Resolution | 6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1 |
| Decoding Capability | 1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4, 8, 9 views |
| Third-party Camera Access | Onvif |
| Compression Standard | |
| Video Compression | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Audio Compression | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE 9 or later; Firefox |
| Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
| Frequency Range | 2400–2483.5 MHz |
| Transmitter Power (EIRP) | CE EIRP: ≤20dBm@2400-2483.5MHz FCC output power: ≤30dBm@2400-2483.5MHz |
| Recording Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | Manual record; alarm record; motion detection record; schedule record |
| Storage Method | Local HDD and network |
| Backup Method | USB device |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (motion detection) |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; tour |

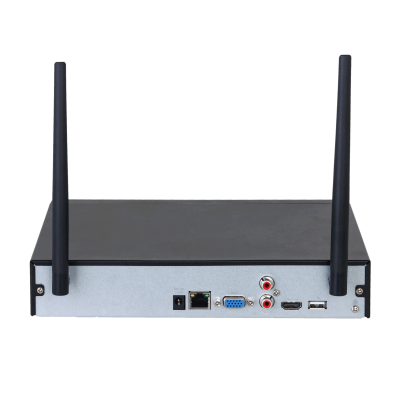

| Port | |
| Audio Input | 1 |
| Audio Output | 1 |
| HDD Interface | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Net Weight | 0.824 kg (1.82 lb) |
| Gross Weight | 1.56 kg (3.44 lb) |
| Product Dimensions | 260.3 mm × 247.3 mm × 44.7 mm (10.25″ × 9.74″ × 1.76″) (W × L × H) |
| Packaging Dimensions | 372 mm × 117 mm × 308 mm (14.65″ × 4.61″ × 12.13″) (W × L × H) |
| Operating Temperature | –10 °C to + 45 °C (+ 14 °F to +113 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | |
| CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311 FCC ID: 47 CFR PART 15 SUBPART C | |
| Ordering Information | |
| Type | 8 Channel NVR |
| Model | DHI-NVR1108HS-W-S2-CE DHI-NVR1108HS-W-S2-FCC |

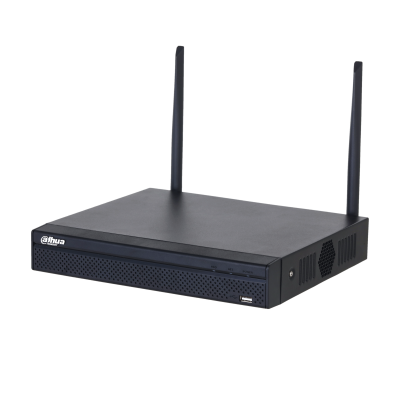

| Description | 8 Channel Compact 1U 1HDD Network Video Recorder |
