| Technical Specification |
|---|
| Camera |
|---|
| Image Sensor | 1/2.8″ CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 × 1440 |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on) |
| Illumination Distance | 150 m (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 4 (IR) |
| Lens |
|---|
| Focal Length | 4.8 mm–154 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7° |
| Optical Zoom | 32× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.8 m–5.0 m |
| Iris Control | Auto; manual |
| DORI Distance | Detect: 2,124 m; Observe: 839 m; Recognize: 425 m; Identify: 212 m |
| PTZ |
|---|
| Pan/Tilt Range | Pan: 0°–360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Intelligence |
|---|
| Video Metadata | Detects vehicles, faces, human bodies; tracking; snapshots; high-quality face images; extracts up to 10 attributes of vehicles |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Face detection, bounding box, snapshot, enhancement, attribute extraction (6 attributes, 8 expressions), face cutout, image selection |
| People Counting | Tripwire, area stay/queue counting, daily/weekly/monthly reports |
| Auto Tracking | Yes |
| SMD | SMD 4.0 |
| Acupick | Target matching for people and vehicles; search live/recorded videos |
| Auto Patrol | IVS triggers PTZ patrol to target position and preset route |
| Video |
|---|
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | 4M; 3M; 1080p; 720p; D1; VGA; CIF |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p; Sub stream1: D1/VGA/CIF; Sub stream2: 1080p/1.3M/720p |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 96–14848 Kbps; H.265: 38–8960 Kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| RoI | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas (max 8 areas per view) |
| S/N Ratio | ≥55 dB |
| Audio |
|---|
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; TLSv1.2; SYSLOG; SSL |
| Interoperability | ONVIF (Profile S&G&T); CGI; SDK |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth 64 M) |
| Storage |
|---|
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser & Software |
|---|
| Browser | IE7+; Chrome 42 or earlier; Firefox 52 or earlier; Safari |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Client | iOS; Android |
| Certification |
|---|
| CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB, ANSI C63.4-2014; UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Port |
|---|
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; tour; pattern; recording; trigger output; audio; send email |
| Alarm Event | Motion/tampering; audio detection; network disconnection; IP conflict; memory card state/space; power exception |
| Power |
|---|
| Power Supply | 24 VDC, 2.5 A ±25%; PoE+ (802.3at) |
| Power Consumption | Basic: 13 W; Max: 22 W (illuminator + PTZ + Heater + Fan) |
| Environment |
|---|
| Operating Temperature | –40 °C to +70 °C |
| Operating Humidity | ≤95% |
| Protection | IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure |
|---|
| Product Dimensions | 332 mm × Φ190 mm (13.07″ × Φ7.48″) |
| Net Weight | 4.7 kg |
| Gross Weight | 8 kg |
| Ordering Information |
|---|

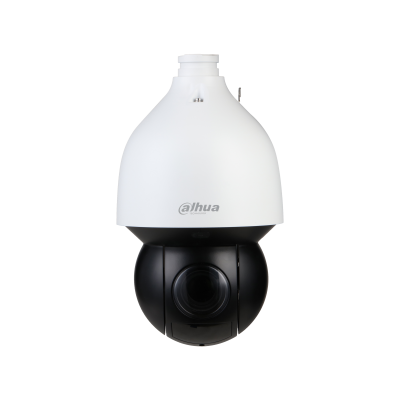

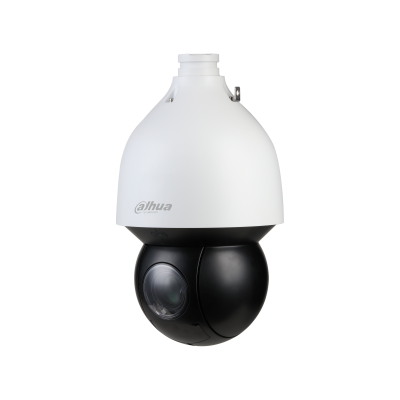

| Type | 4MP WizSense Network PTZ Camera |
| Model | DH-SD5A432GB-HNR / SD5A432GB-HNR |
| Description | 4MP 32x Starlight IR WizSense Network PTZ Camera |
| Accessories | PFB305W Wall Mount Bracket; DC24V/2.5A Power Adapter; PFA111 Mount Adapter; PFA140 Power Box; PFB300C Ceiling Mount Bracket; PFB301C Ceiling Mount Bracket; PFA120 Junction Box; PFA150 Pole Mount Bracket; PFA151 Corner Mount Bracket |
