| Technical Specification | |
|---|---|
| Model | |

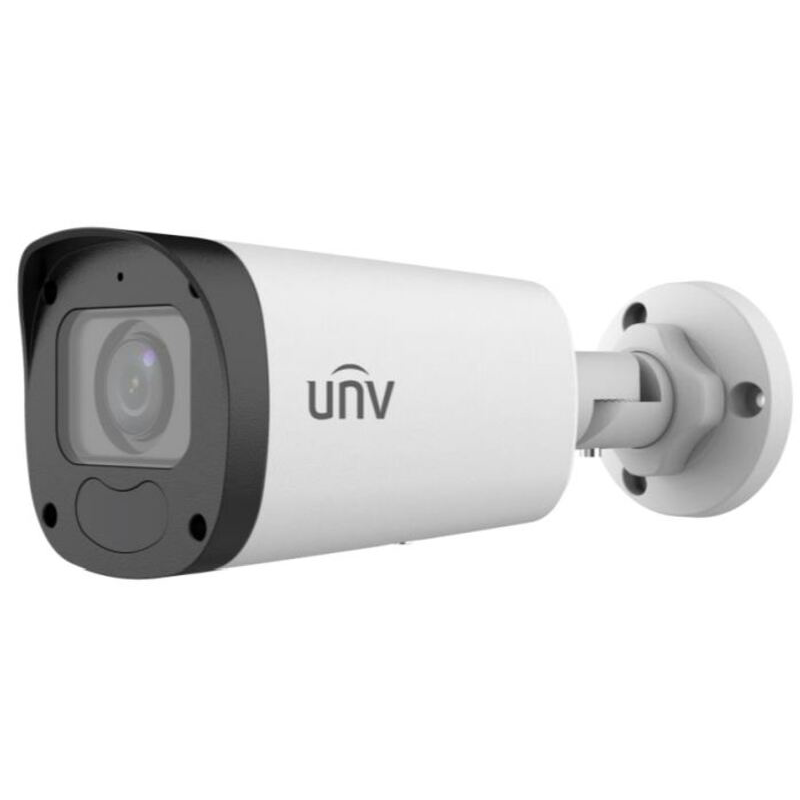

| Model Name | IPC2325LB-ADZK-G |
| Camera | |
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan CMOS |
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom |
| Angle of View (H) | 108.79° ~ 33.23° |
| Angle of View (V) | 56.90° ~ 18.33° |
| Angle of View (O) | 112.56° ~ 37.46° |
| Adjustment Angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N Ratio | >56dB |
| IR Range | Up to 50m (164ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| DORI Distance | |
| 2.8mm Lens | Detect: 63m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m |
| 12mm Lens | Detect: 270m, Observe: 108m, Recognize: 54m, Identify: 27m |
| Video | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 5MP (2880×1620) @30fps; 4MP (2560×1440) @30fps; 3MP (2304×1296) @30fps; 1080P (1920×1080) @30fps Sub Stream: 720P (1280×720) @30fps; D1 (720×576) @30fps; 640×360 @30fps; 2CIF (704×288) @30fps; CIF (352×288) @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° / 90° CW / 90° CCW |
| Dewarping | N/A |
| HLC / BLC | Supported |
| Audio | |
| Compression | G.711 |
| Noise Suppression | Supported |
| Sampling Rate | 8KHz |
| Built-in Microphone | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP |
| Integration | ONVIF (Profile S/G/T), API |
| Client Software | EZStation, EZView, EZLive |
| Web Browser | Plug-in: IE9+, Chrome ≤41, Firefox ≤52 Plug-in free: Chrome ≥57, Firefox ≥58, Edge ≥16 |
| Network Interface | 10/100M Base-TX Ethernet |
| Certifications | |
| CE | EN 60950-1 |
| UL | UL60950-1 |
| FCC | FCC Part 15 |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af), Max 8.5W |
| Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
| Weight | 0.55kg (1.2lb) |
| Material | Metal |
| Operating Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
