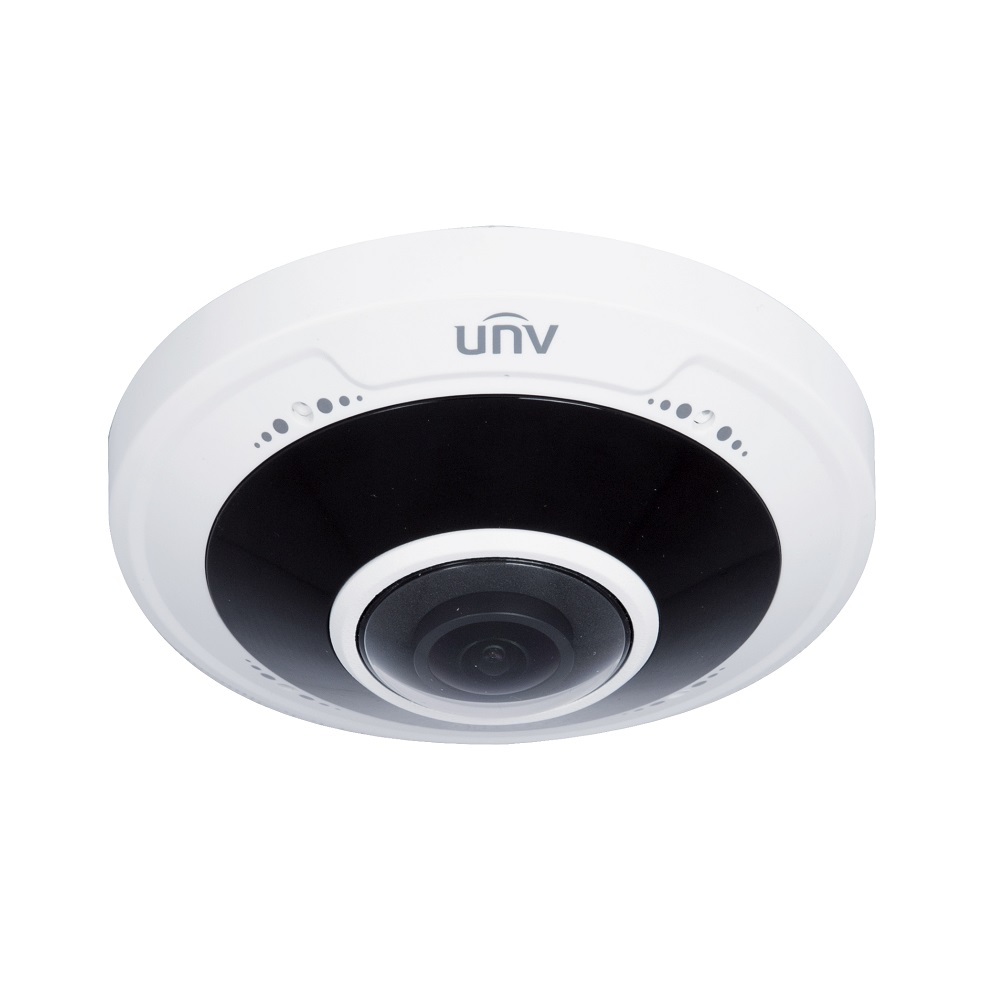

| Camera Specification: IPC814SR-DVPF16 | |
|---|---|
| Camera | |
| Image Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens | 1.6mm @ F1.6 |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.01 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter for day & night function |
| Digital Noise Reduction | 2D/3D DNR |
| S/N Ratio | >55 dB |
| IR Range | Up to 10m (33ft) |
| Defog | Digital Defog |
| WDR | 120 dB |
| Angle of View | 180° |
| DORI | |
| Lens (mm) | 1.6 |
| Detect | 36 m |
| Observe | 14.4 m |
| Recognize | 7.2 m |
| Identify | 3.7 m |
| Video | |
| Compression | Ultra265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 4MP (2560×1440) Max 25fps Sub Stream: 1080P (1920×1080) Max 25fps Third Stream: D1 (720×576) Max 25fps |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| General Functions | |
| Functions | Watermark, IP Address Filtering, Tampering Alarm, Alarm Input/Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Integration | ONVIF (Profile S, G, T), API |
| Live View Display | Supports table, wall, and ceiling mount |
| Interface | |
| Audio I/O | Input: impedance 35kΩ, amplitude 2V [p-p] Output: impedance 600Ω, amplitude 2V [p-p] 3 built-in omnidirectional microphones |
| Alarm I/O | 1/1 |
| Built-in Mic | Supported |
| Video Output | 1 BNC, impedance 75Ω, amplitude 1V [p-p] |
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| General | |
| Power | DC 12V ±25%, PoE (IEEE 802.3af), Max 11W |
| Dimensions | Φ125 × 43.7 mm (4.9” × 1.7”) |
| Weight | 0.39 kg (0.86 lb) |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity ≤95% RH |
| Ingress Protection | IP66 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
