| Specifications | |
|---|---|
| Model | |

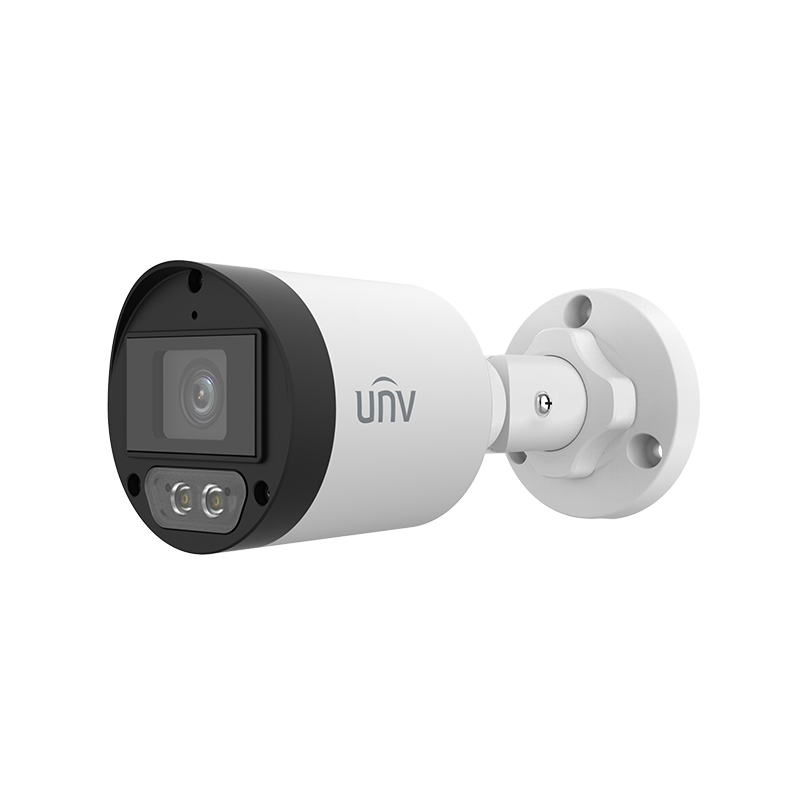

| Models | UAC-B122-AF28M-W / UAC-B122-AF40M-W |
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/2.9″ CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON); 0 lux (white light on) |
| Lens | |
| Focus | 2.8 mm / 4.0 mm |
| Lens Mount | M12 |
| Angle of View (H) | 101.5° (2.8mm) / 83.8° (4.0mm) |
| Angle of View (V) | 56.9° (2.8mm) / 42.7° (4.0mm) |
| Angle of View (D) | 117.4° (2.8mm) / 100.1° (4.0mm) |
| Illuminator | |
| Illuminator Number | Two white-light illuminators |
| Illumination Distance | 40 m |
| Lifetime | ≥ 60,000 hours |
| Video | |
| Resolution | 1080P: 1920×1080 720P: 1280×720 |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL / NTSC |
| Shutter Time | PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Image | |
| Exposure Mode | Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D / 3D |
| White Balance | Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal and 180° vertical flip |
| Digital Defog | Support |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | –30°C to +60°C (–22°F to +140°F) |
| Humidity | ≤95% RH (non-condensing) |
| Surge Protection | 4 KV for power and 4 KV for video output interfaces |
| Ingress Protection | IP67 |
| General | |
| Power Supply | DC 12V ±25% |
| Power Consumption | Max. 3.12 W |
| Mount Type | Corner Mount / Pole Mount |
| Dimensions | 157 mm × 67 mm × 66 mm (L × W × H) |
| Material | Metal |
| Weight | 279 g (0.62 lb) |
