| Technical Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE); 0.0003 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (IR and Warm light) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 2 (IR LED) + 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 101°; V: 53°; D: 120° 3.6 mm: H: 82°; V: 44°; D: 96° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m; 3.6 mm: 2.2 m |
| DORI Distance | |
| 2.8 mm | Detect: 66 m; Observe: 26.4 m; Recognize: 13.2 m; Identify: 6.6 m |
| 3.6 mm | Detect: 78 m; Observe: 31.2 m; Recognize: 15.6 m; Identify: 7.8 m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, Tripwire (vehicle and human classification) |
| SMD | SMD 4.0 |
| Smart Search | Supported (via Smart NVR) |
| AcuPick | Accurate human/vehicle search using AI algorithms |
| AI SSA | Automatic scene self-adaptation |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265/AI H.264 (≥25% compression rate) |
| Video Frame Rate | Main: 2688×1520@1–25/30fps Sub: 704×576@1–25fps Third: 1920×1080@1–25/30fps |
| Streams | 3 Streams |
| Resolution | 4M / 3M / 1080p / 1.3M / 720p / D1 / VGA / CIF |
| Bit Rate Control | VBR / CBR / ABR |
| Video Bit Rate | 3 kbps – 16384 kbps |
| WDR | 120 dB |
| Defog | Yes |
| Scene Self-adaptation | Yes (SSA) |
| Smart Illumination | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes (dual mic) |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Input/Output | 1 In / 1 Out |
| Alarm Events | No SD card; Full; Error; Network disconnection; IP conflict; Illegal access; Motion; Video tampering; Tripwire; Intrusion; Scene change; Audio detection; SMD; Security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocols | IPv4; IPv6; HTTP; TCP; UDP; RTP; RTSP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; SNMP; P2P |
| Interoperability | ONVIF (Profile S/G/T); CGI |
| Max. Users | 20 (Total bandwidth: 64 Mbps) |
| Storage | FTP; SFTP; NAS; Micro SD (up to 512 GB) |
| Power & Environment | |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic: 3.7 W (12 VDC); Max: 8.8 W (PoE, full load) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal + Plastic |
| Product Dimensions | 288.4 × 94.4 × 84.7 mm (11.35″ × 3.72″ × 3.33″) |
| Net Weight | 1.0 kg |
| Gross Weight | 1.23 kg |
| Ordering Information | |
| Type | 4MP Camera |

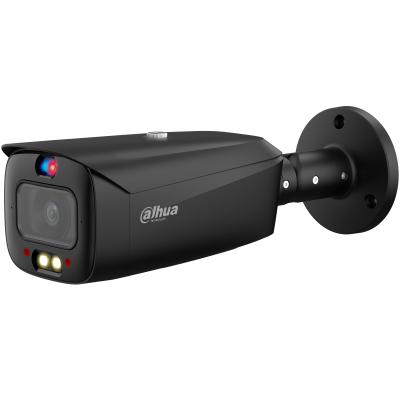

| Model | DH-IPC-HFW3449T1-AS-PV |
| Description | 4MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera |
| Accessories (Optional) | PFA135: Junction Box PFA130-E: Water-proof Junction Box PFA152-E: Pole Mount Bracket PFM321D: 12 VDC 1A Power Adapter PFM900-E: Integrated Mount Tester TF-P100: MicroSD Memory Card |
