| Technical Specification | |
|---|---|
| Model | |

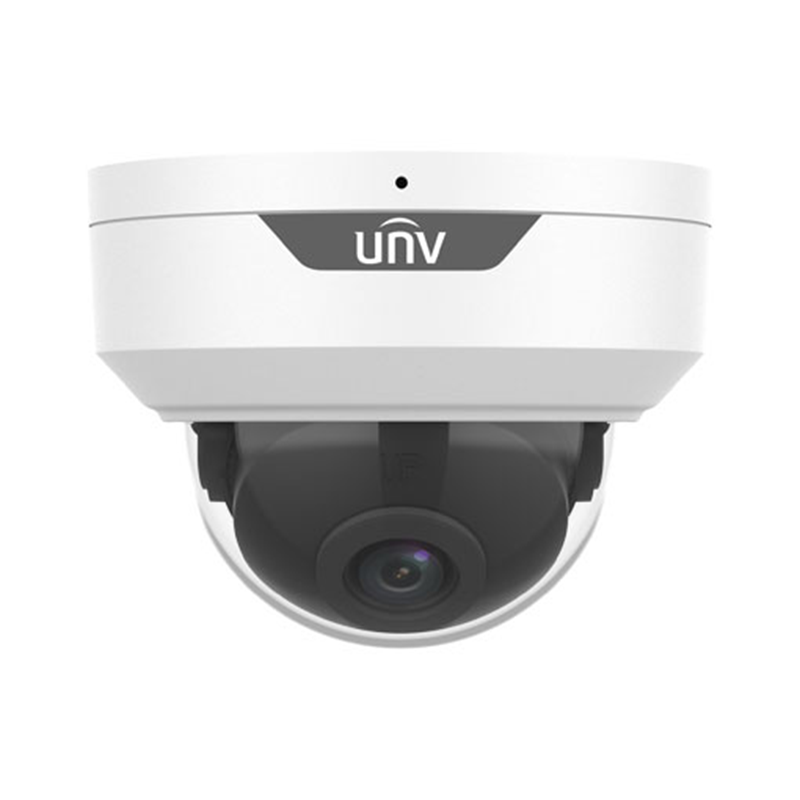

| Model Name | IPC328LE-ADF28K-G / IPC328LE-ADF40K-G |
| Camera | |
| Sensor | 1/2.7″, 8.0 megapixel, progressive scan CMOS |
| Minimum Illumination | EasyStar: Color: 0.005Lux (F1.6, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000s |
| Adjustment Angle | Pan: 8°~360°, Tilt: 0°~68°, Rotate: 10°~360° |
| S/N Ratio | >56dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 2.8mm and 4.0mm @F1.6, Fixed-focal |
| Lens Mount | M12 |
| Angle of View (H) | 112.9° / 91.2° |
| Angle of View (V) | 59.1° / 47.9° |
| Angle of View (O) | 121.2° / 95.9° |
| DORI Distance | |
| 2.8mm | Detect: 84m, Observe: 33.6m, Recognize: 16.8m, Identify: 8.4m |
| 4.0mm | Detect: 120m, Observe: 48m, Recognize: 24m, Identify: 12m |
| Illuminator | |
| IR Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 8MP (3840×2160) @20fps; 5MP (3072×1728) @30fps; 4MP (2560×1440) @30fps; 1080P (1920×1080) @30fps Sub Stream: 1080P @30fps; 720P @30fps; D1 @30fps; 640×360 @30fps; 2CIF @30fps; CIF @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-Code | Supported |
| Corridor Mode (9:16) | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable via web browser |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° / 90° CW / 90° CCW |
| Defog | Digital Defog |
| HLC / BLC | Supported |
| Dewarping | N/A |
| Audio | |
| Compression | G.711 |
| Noise Suppression | Supported |
| Sampling Rate | 8KHz |
| Built-in Microphone | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Integration | ONVIF (Profile S/G/T), API, SDK |
| Users/Hosts | Up to 32 users (Administrator & Common) |
| Security | Password protection, HTTPS encryption, TLS 1.2, ONVIF authentication, Operation logs |
| Network Interface | 1 × RJ45 10M/100M Base-TX Ethernet |
| Client & Compatibility | |
| Client Software | EZStation, EZView, EZLive |
| Web Browser | Plug-in: IE9+, Chrome ≤41, Firefox ≤52 Plug-in free: Chrome ≥57, Firefox ≥58, Edge ≥16 |
| Certification | |
| EMC | FCC Part 15 |
| Safety | CE: EN60950-1, UL: UL60950-1, IEC 60950-1 |
| General | |
| Power | DC 12V ±25%, PoE (IEEE802.3af), Max 4.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø × H) | Φ109 × 83mm (Ø4.3” × 3.3”) |
| Weight | 0.37kg (0.82lb) |
| Material | Metal + Plastic |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH (non-condensing) |
| Storage Conditions | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
